LWRM/LWRV type
LWRM/LWRV type
M/V modular range rails can be equipped with aluminium or plastic needle roller assemblies. They are dimensional wise interchangeable to LWR rails in size 6 and 9.
Precision rails with needle roller assemblies
Benefits
- Ultimate rigidity and load capacity
- Best for heavy duty applications
- Excellent motion accuracy
Features
- Needle rollers also with ACSM option
- Rail sizes up to large cross sections
- Available in two precision classes
Needle roller assemblies are for heavy-duty applications requiring ultimate rigidity. Ewellix offers two series with needle rollers the LWM/V and LWRM/V. The LWM/V rails are also offered in ACSM version with Ant-Creeping-System. Rail guides with needle rollers provide maximum dynamic and static load carrying capacity. They are often used in grinding machines, presses and other machining tool applications.
Technical Data
Overview
| LWRM / LWRV | LWM / LWV | |
|---|---|---|
| Range | Size 6, 9 | Size 3015 to 8050 |
| Speed | 2 m/s | 2 m/s |
| Acceleration | 100 m/s2 | 100 m/s2 |
| Accuracy | up to 2 µm / 100 mm rail | up to 2 µm / 100 mm rail |
| Operating temperature | -30 to +80 °C with plastic cage -30 to +120 °C with aluminum cages |
-30 to +80 °C with plastic cage -30 to +120 °C with aluminum cages |
Rails and cage types
LWM/LWV type
LWM/LWV type
M/V standard rails for needle roller assemblies in plastic or aluminium. Available in sizes 3015, 4020, 5025, 6035, 7040 and 8050 to cover most machine tool applications
LWM/LWV with ACSZ
LWM/LWV with ACSZ
M/V type rails with ACSZ (Anti-Creeping- System) for constant cage position and motion precision.
The rack and pinion design comes with an aluminium needle roller assembly.

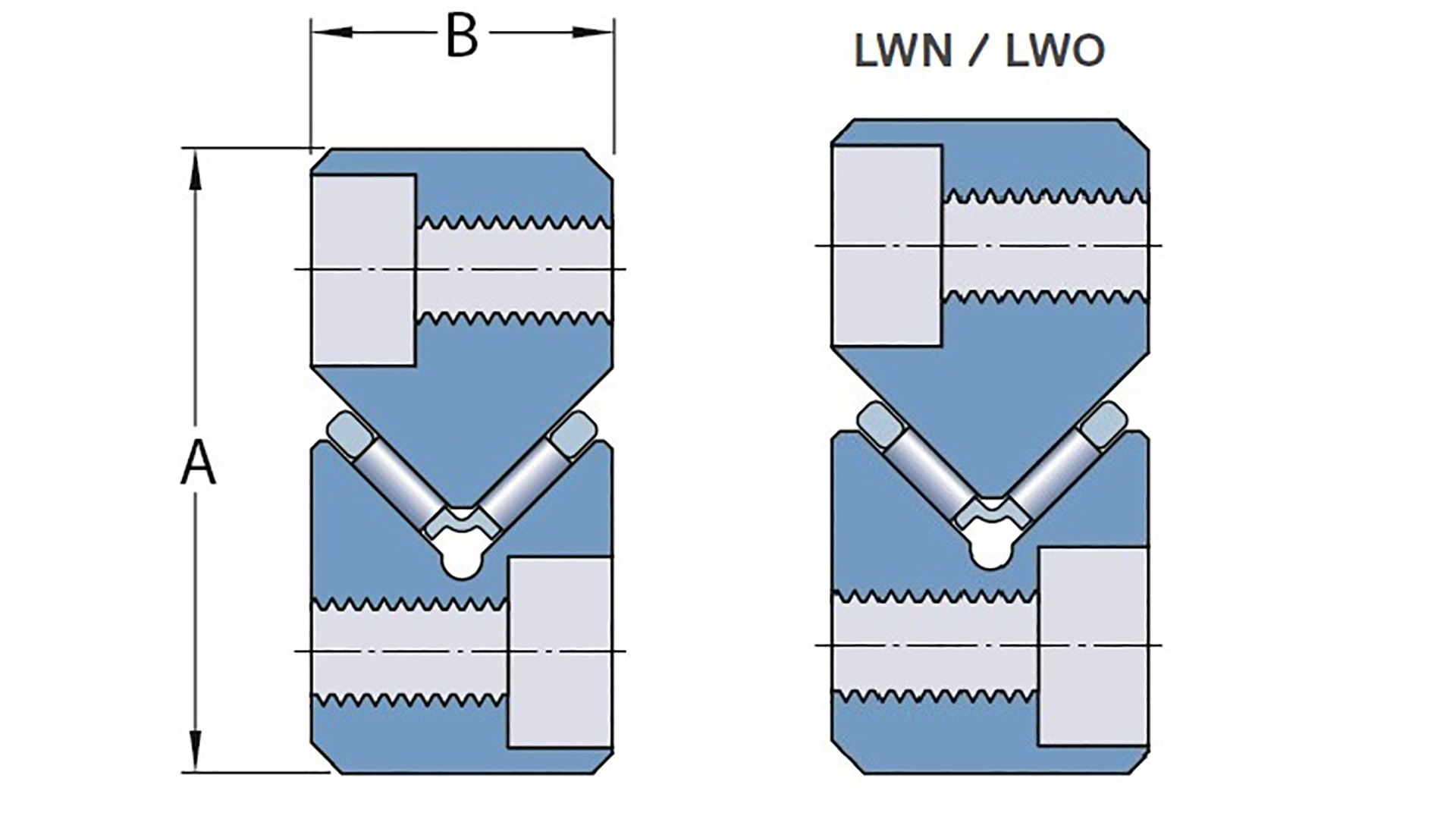

LWN/LWO type
LWN/LWO type
Same performance as LWM//V type rails with needle roller assemblies. N/O rails do have different outside dimensions to be interchangeable to competitor offers.
End pieces
LWERM/LWERV
LWERM/LWERV
Standard end pieces for both M and V rails to be used in conjunction with LWRM/LWRV rails.
LWEARM/LWEARV
LWEARM/LWEARV
Standard end pieces with efficient wipers for both M and V rails to be used in with LWRM/LWRV rails.
LWEM/LWEV
LWEM/LWEV
Standard end pieces for both M and V rails to be used in combination with LWM/LWV rails.
LWEAM/LWEAV
LWEAM/LWEAV
Standard end pieces with efficient wipers for both M and V rails to be used in combination with LWM/LWV rails.
