LLSHC..TA
LLSHC..TA
Standard carriage in standard length shielded
Miniature profile rail guides
Benefits
- Long service life, virtually maintenance-free
- Smooth running with low friction, best in class
- Good availability and shorter time to market
Features
- Factory pre-lubricated products with lube reservoir
- Unique low friction low noise ball retention
- Zero Rail Concept with interchangeable blocks on rails
Miniature profile rail guides are made for applications requiring compact, high running accuracy, long service life and low noise. Ewellix LLS systems offer extremely smooth running behaviour. The robust ball retention system avoids surprises during mounting. The products are ready to install while pre-lubricated with a lubrication reservoir for long service life. Rails and carriages (blocks) both have two reference sides for easy mounting. Please contact us for more information about our linear guide product range or profile guide rail!
Case studies:
Technical Data
Overview
| Range | Standard and wide types from size 7-15 |
|---|---|
| Speed | 5 m/s |
| Acceleration | up to 140 m/s2 |
| Length | Rail length up to 2 m in one piece |
| Accuracy | up to 7 µm / 1 000 mm |
| Operating temperature | -20 to +80 °C |
Carriage types
LLSHC..TA R
LLSHC..TA R
Standard carriage in standard length sealed
LLSHC..LA
LLSHC..LA
Standard carriage in extended length shielded
LLSHC..LA R
LLSHC..LA R
Standard carriage in extended length sealed
LLSWC..TA
LLSWC..TA
Wide carriage in standard length shielded
LLSWC..TA R
LLSWC..TA R
Wide carriage in standard length sealed
LLSWC..LA
LLSWC..LA
Wide carriage in extended length shielded
LLSWC..LA R
LLSWC..LA R
Wide carriage in extended length sealed

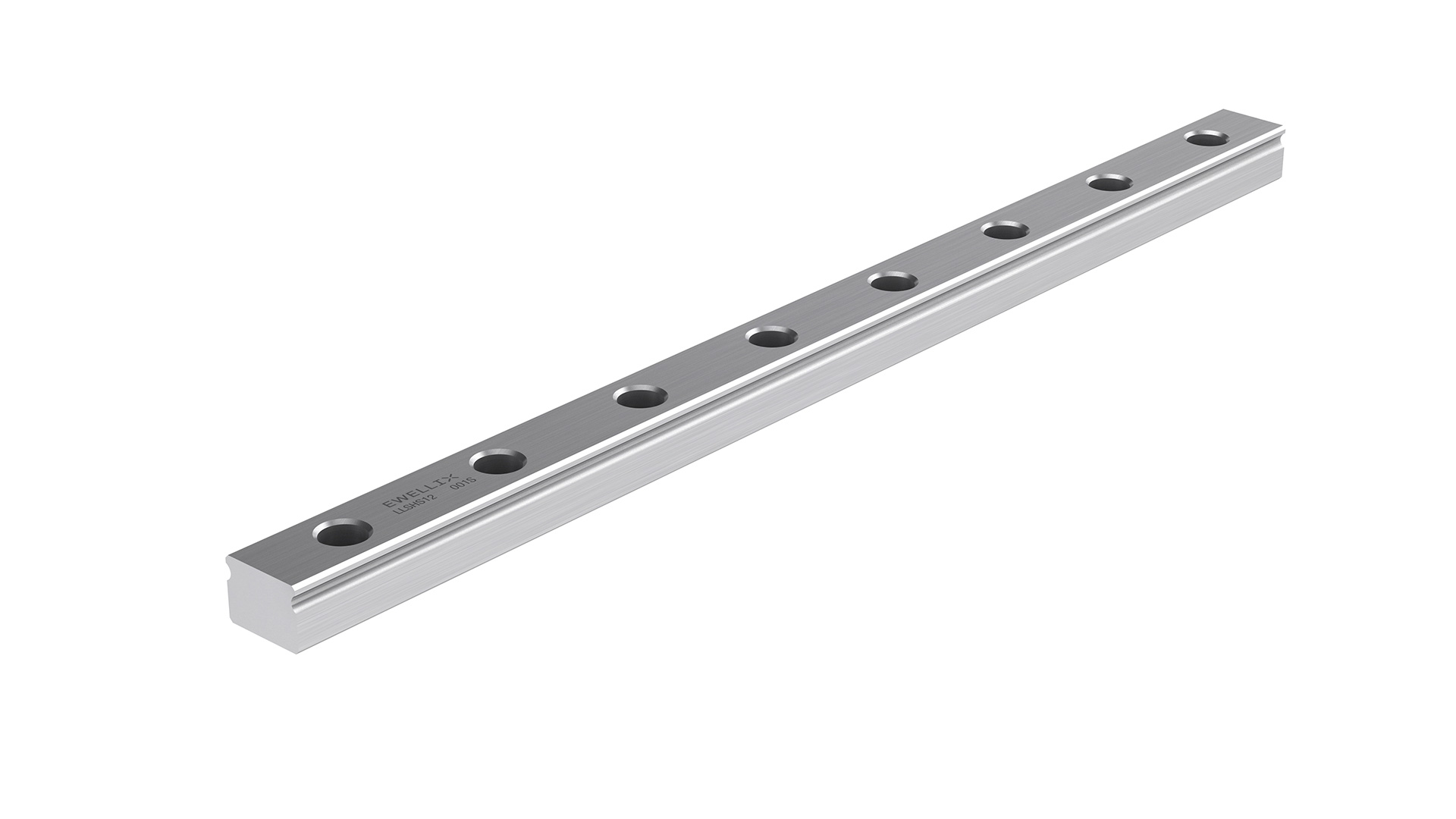

Rail types
Zero Rail Concept (ZRC)
The newly developed Ewellix Zero Rail Concept (ZRC) offers flexibility and availability. Within the ZR-Concept, any carriage can be mounted together with the rail of the same size. Spare parts can be handled much quicker and due to standardization, delivery times are shorter in comparison to system configurations. Zero Rail Concept carriages and rails are delivered separately. The ZRC offer is standardized for precision class P5 (Standard precision) together with preload class T0 (Light clearance) and T1 (Light preload). Any carriage or rail from this range must be ordered with the suffix ZRC in the ordering key.
2D / 3D
Publications
IL-06021/2-EN-February 2023 Miniature profile rail guides-LLS
EL-04007-1-EN-January 2023 WhyEwellix LLS
EL-03003/1-EN-February 2023 Advancing laboratory automation
EL-03007/2-EN-February 2023 Solutions for imaging equipment
EL-03019-EN-January 2023-Solutions for dental equipments
EL-03022/1-November 2024-EN - Solution for plastic and rubber
VP-10008-EN-Miniature profile rail guide LLS - Specification sheet
