Miniature high-performance range for industrial applications

Benefits

Smooth running with low noise levels
High speed capabilities, up to 2,4 times the standard range
Provides long service life and excellent repeatability
High positioning accuracy

Features

New recirculation technology and new thread profile definition
Interchangeable with most existing standard solutions
Lubrication hole and wiper housings standard
Customised axial play and backlash elimination available

Ewellix's high-performance miniature ball screws offer device manufacturers new design and performance options with high reliability, precision and repeatability, and low noise levels.
It allows designers to reduce machine size, improve reliability, increase speed and power, and reduce operating noise for a wide variety of applications.
Our miniature ball screws enable precise and quiet positioning at high speed and low friction and require minimal maintenance. They are designed for high axial loads and are available in a wide range of robust, custom designs to suit practically all applications.
Enabling precise positioning for miniature applications, these quiet-running miniature ball screws operate at high speeds with low friction and minimal service requirements. Robust and capable of handling high thrust loads, the screws are supplied in a wide range of types and available as customized solutions to meet virtually any application requirement.

Case studies:

Technical Data

Overview

Nominal diameter	from 8 to 16 mm
Lead	from 2 to 5 mm
Basic dynamic load capacity	from 2,2 to 7,6 kN
Basic static load capacity	from 2,7 to 10,7 kN
Axial play	from 0,00 to 0,07 mm
Maximum speed n x d0	120 000

Nuts

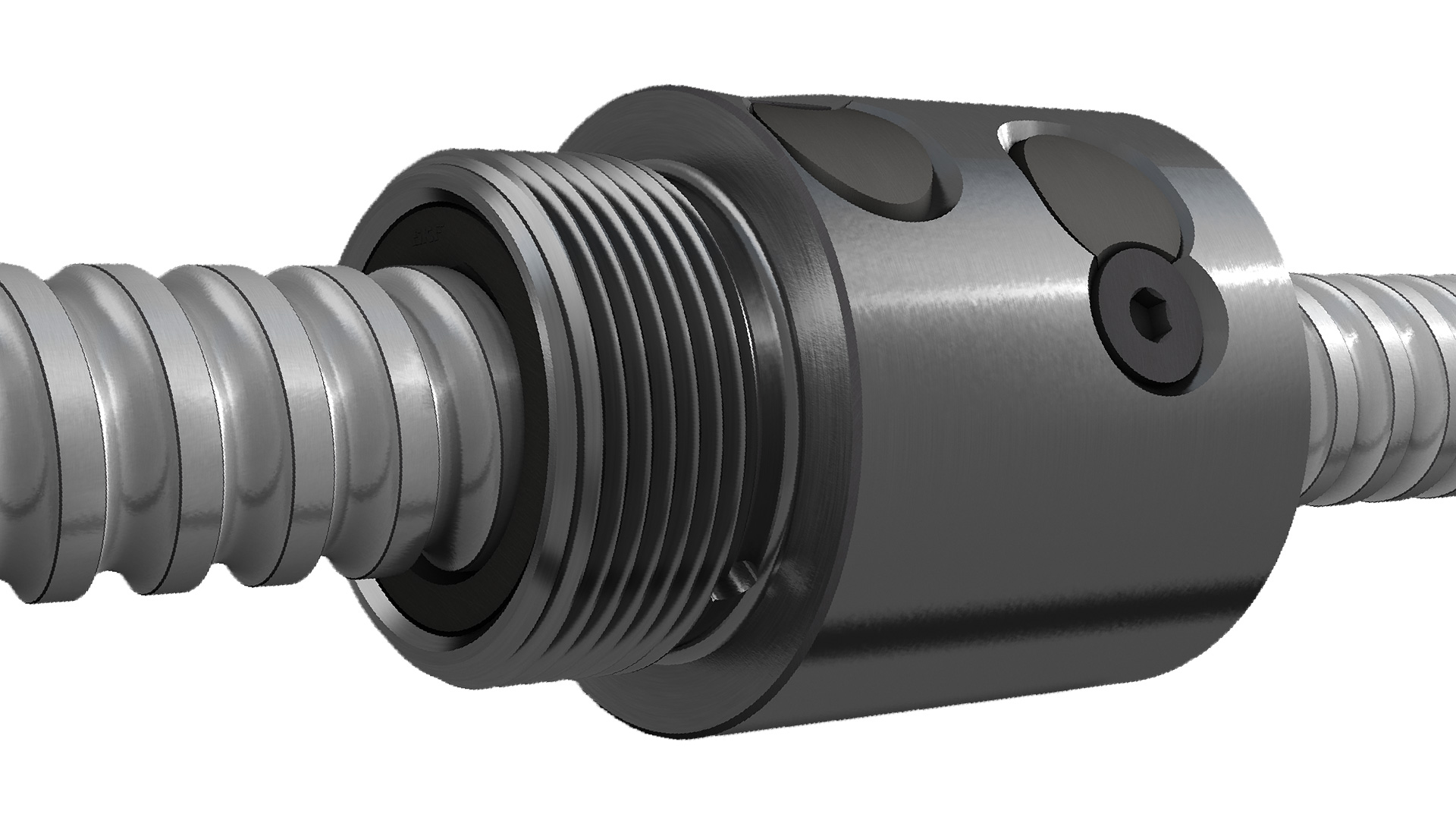

SP

2D / 3D

For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
